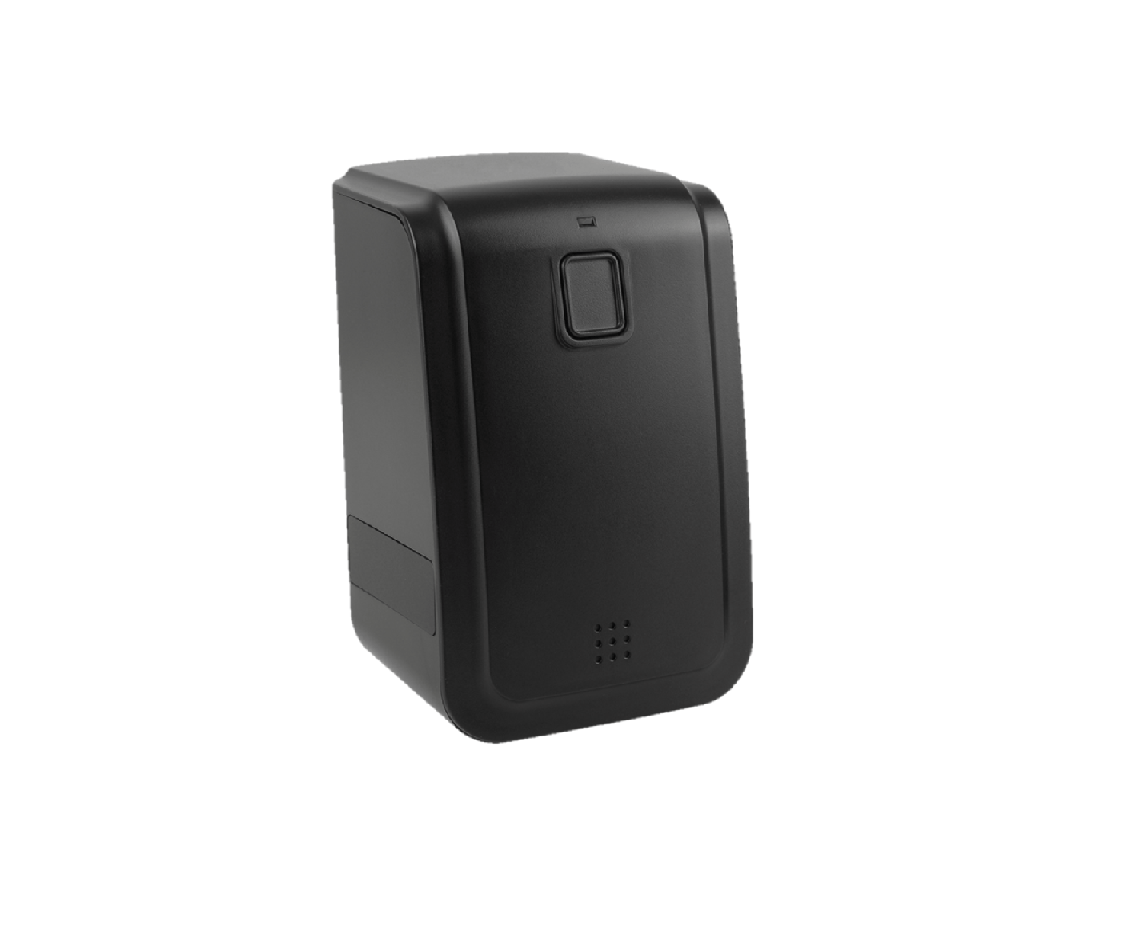

RapidScan ST5-PC
RapidScan PC is a benchtop reader working with Rapid Test View software on Windows OS for both lateral flow assay development and diagnostic use.
- USB 2.0 powered, no power adapter needed
- Maintenance free
- Cost-effective
▪ Small footprint
Dimension : 11x12x21cm
Net weight : 1 kg
▪ USB 2.0 powered device, no power adapter needed

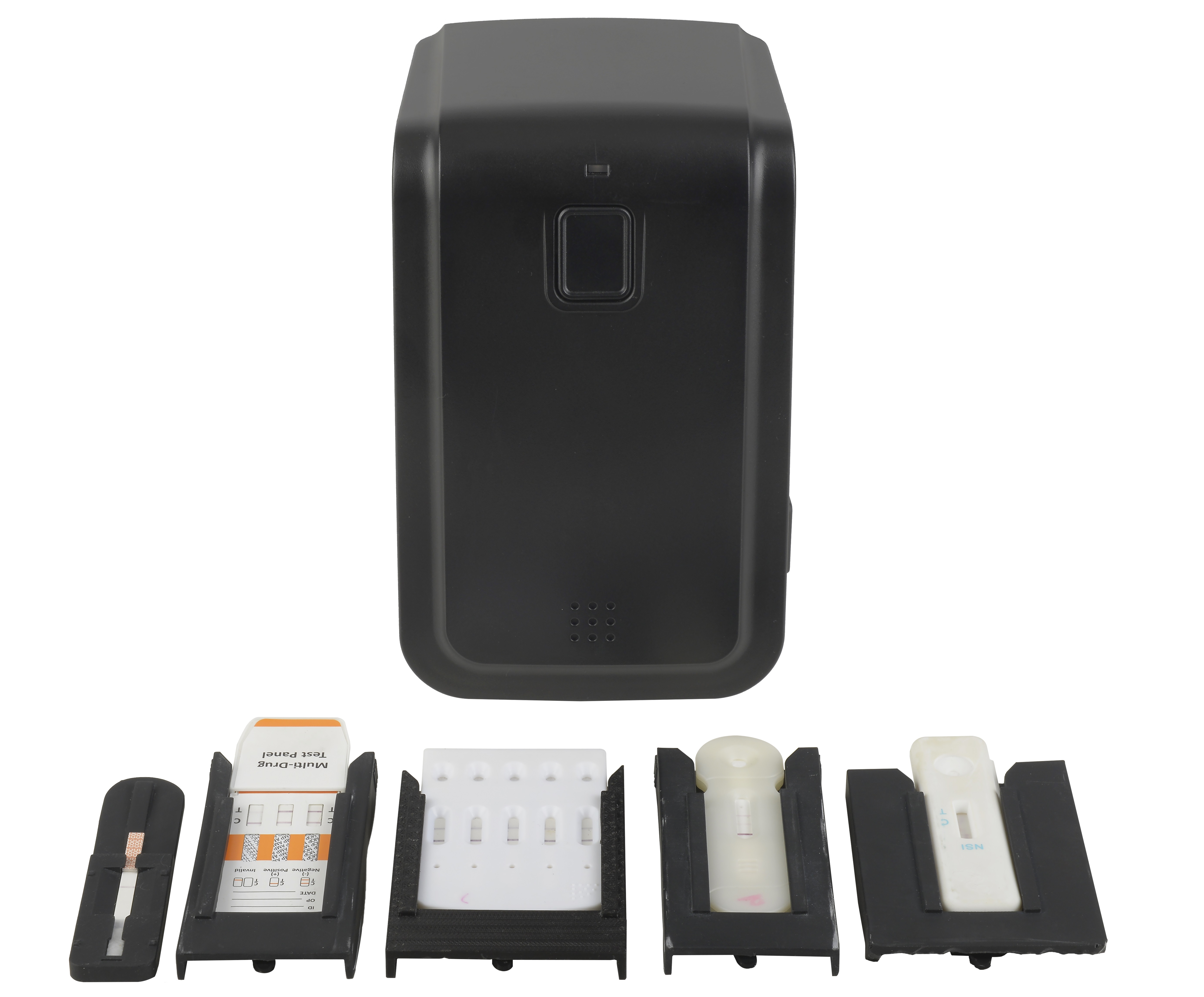

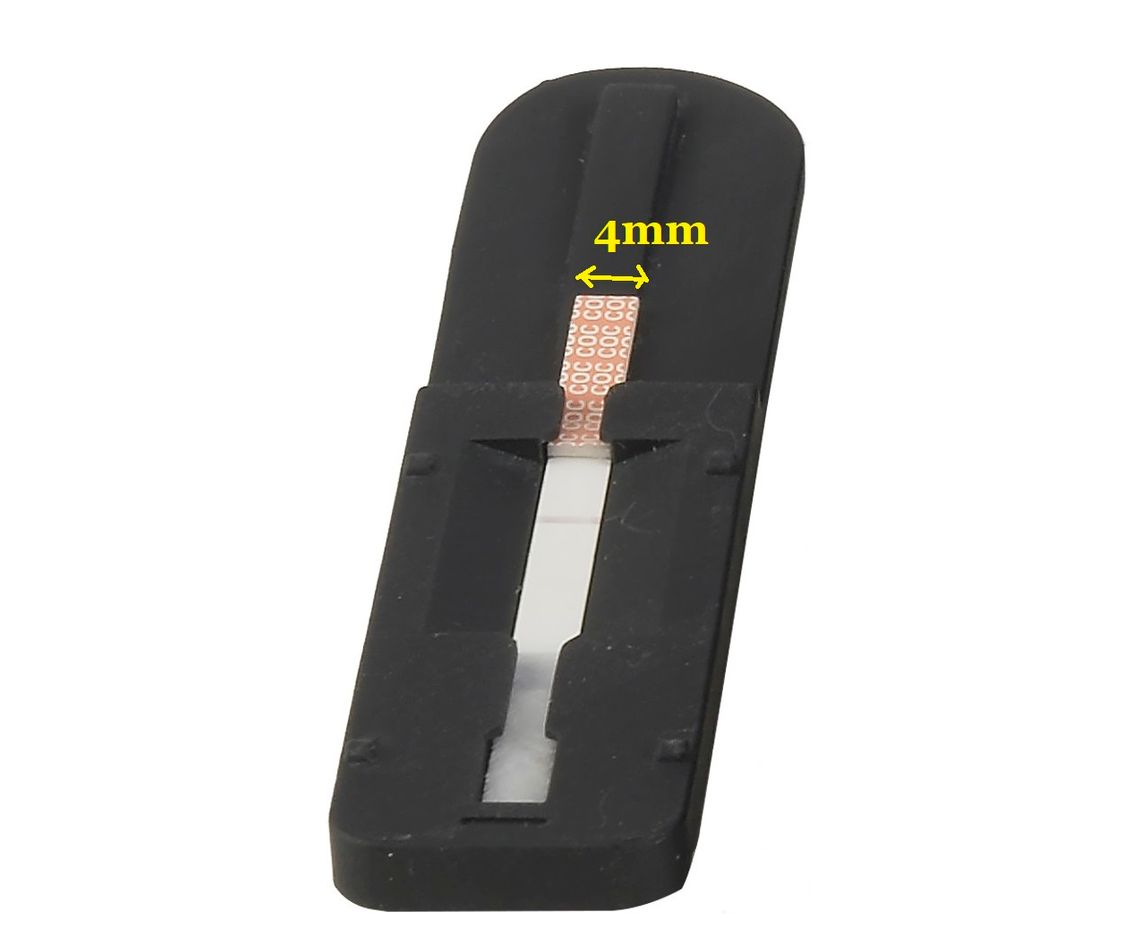

▪ Flexible cassette and strip adapter design to fit for different types of cassette and strip
▪ Rapid Test View PRO software for assay development
Control and test line analysis area setting
Mapping curve setting
Cut off value setting
Multiplex assay's design
Various color mode options for optimizing colorimetric assay's working range
Proprietary QR encode and decode feature

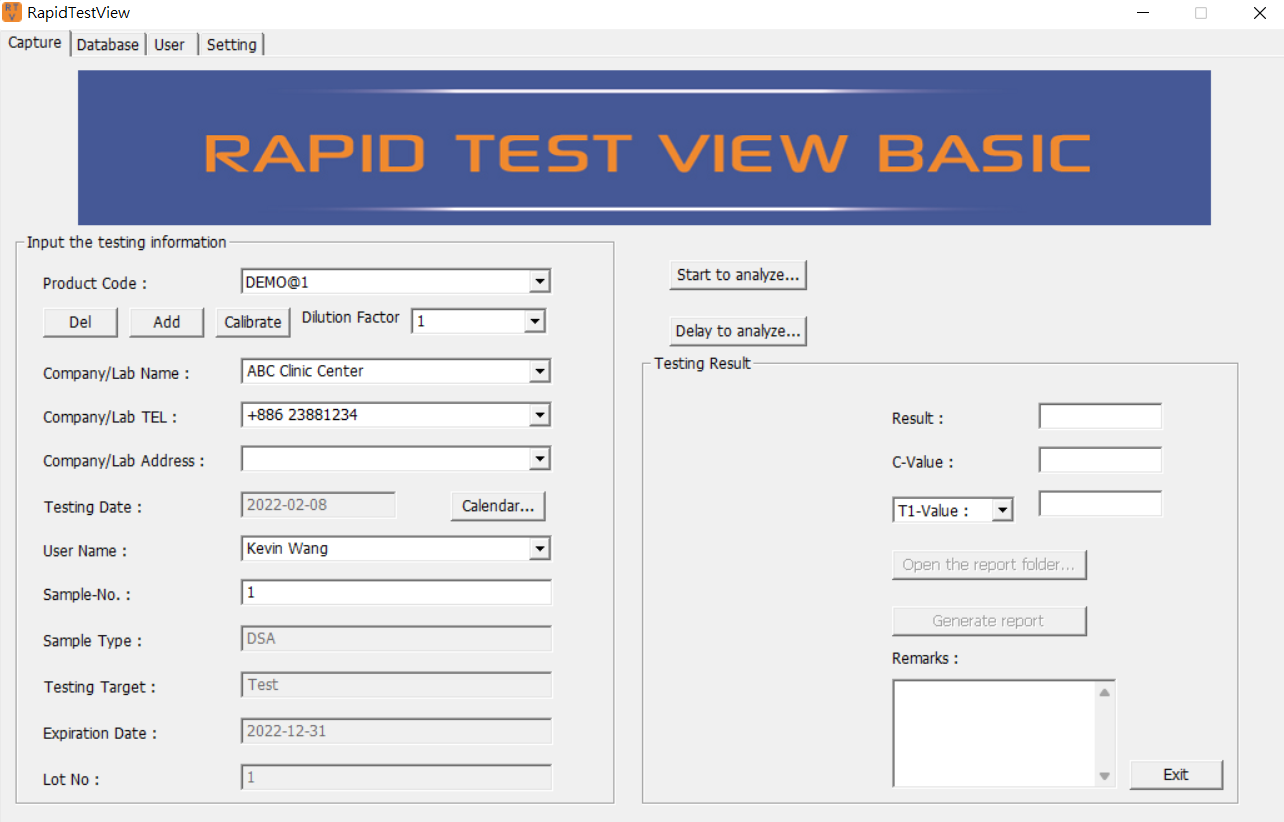

▪ Rapid Test View Baic software for diagnostic use
Read now and walk away analysis
Recorded test result management
PDF report with test image provided
#rapidtest
#lateralflowtest
#lateralflowassay
#rapiddiagnostictest
#lateralimmunochromatographicassay
#lateralimmunochromatographictest
#lateralflowdevice
#rapiddiagnostictestreader
| Item | ST5 PC | |
| Operation | Standalone | X |
| Mobile | X | |
| PC | O | |
| Connectivity | USB | |
| DSK | O | |
| Test Target | Fluorescent LFA | O |
| Colorimetric LFA | O | |
| Hue biochemistry | O | |
| Detection Method | Image | |
| Measurement | Qualitative | O |
| Semi-Quantitative | O | |
| Quantitative | O | |
| Support Form Factor | Single Strip | O, M Ts |
| 1 Strip in 1 case | O, M Ts | |
| M strips in 1 case | O, M Ts | |
| Auto Check Type | QR Code | O |
| Data Matric Code | O | |
| OCR | O | |
| Pattern Check | O | |
| Strip Color | O | |
| UV LED Sterilization | Option | |
| USB Peripheral | USB Driver | PC |
| Thermal Printer | PC | |
| Bar Code Reader | PC | |
| Cloud Solution | Option | |
| Dimension | Size (WxLxH) (cm) | 11x12x21 |
| Weight (g) | 550 | |
| Power | USB | |
| Battery | X | |
